Poly Chain GT2 Idler Hardware

Poly Chain GT2 Idler Hardware
 Poly Chain® GT CarbonTM Idler Dimensions
 Part No.    Product No.    Size Designation    Belt Wth (mm)    No. of Teeth    O.D. (In)    B Ref. (In)    C (In)    D (In)    E Ref. (In)    F (Threads) (In)    G Ref. (In)    H (In)    J (In)    Wt. (lb)
 12-IDL-SPRK    7720-1500    8MX-32S-12    12    32    3.145    1.25    0.50    0.85    1.56    3/4-16    0.94    2.75    -   1.0
 21-IDL-SPRK    7720-1510    8MX-32S-21    21    32    3.145    1.25    0.50    1.24    1.56    3/4-16    0.56    2.75    -   1.1
 36-IDL-SPRK    7720-1520    8MX-36S-36    36    36    3.546    1.91    0.75    1.86    1.63    3/4-16    -   -   -   2.0
 62-IDL-SPRK    7720-1530    8MX-36S-62    62    36    3.546    1.91    0.75    2.91    1.69    3/4-16    0.69    3.13    -   2.1
 20-IDL-SPRK    7720-1600    14MX-30S-20    20    30    5.153    2.55    1.00    1.36    2.25    1-14    1.00    4.38    -   9.0
 37-IDL-SPRK    7720-1610    14MX-30S-37    37    30    5.153    2.55    1.00    2.06    2.25    1-14    0.25    4.38    -   12.0
 68-IDL-SPRK    7720-1620    14MX-34S-68    68    34    5.855    3.38    0.56    3.33    2.25    1-14    1.00    4.88    4.34    15.6
 90-IDL-SPRK    7720-1640    14MX-34S-90    90    34    5.855    3.38    0.31    4.20    2.25    1-14    1.00    4.88    4.34    16.7
 125-IDL-SPRK    7720-1630    14MX-34S-125    125    34    5.855    3.38    0.19    5.63    2.25    1-14    1.09    4.88    4.34    23.1
Sort by:

Specify a quantity for any of the products listed on this page, then click 'Add to Cart' to add them to your shopping cart. If the quantity field is not visible for a product, you must click on the 'More Details' button and select the options or fill out the fields that require your input.

Qty

SKU
Description
Price
10-IDL-BRAK

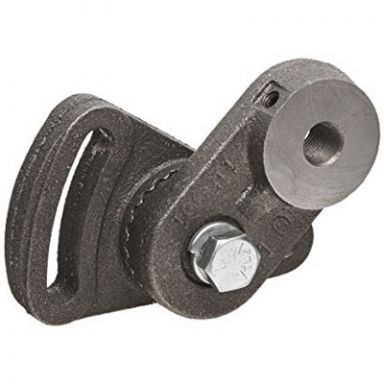

Gates 10-IDL-BRAK Idler Bracket with bolt thread 3/4 - 16for use with 1610-IDL-BUSH 8mm Pitch Idler Sprockets, 4.25" OD Flat Idler Pulleys, 2012-IDL-BUSH, 2517-IDL-BUSH, 20-IDL-BUSH (SK) 14mm Pitch Idler Sprockets, 6.50" OD Flat Idler Pulleys, 30-IDL-BUSH (SF), 40-IDL-BUSH (E). Gates Product ID 7720-1010
Price: $115.00
You Save: $81.53 (41%)
125-IDL-SPRK

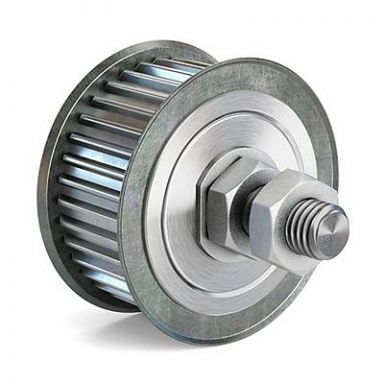

125-IDL-SPRK Gates Poly Chain GT Carbon Idler Sprocket 5.965 inch pitch diamter 34 teeth for use with Poly Chain GT Carbon belts with a 14mm pitch and 125mm wide. Gates product ID 77201630
Price: $1,012.75
You Save: $867.52 (46%)
12-IDL-SPRK
12-IDL-SPRK Gates Poly Chain GT Carbon Idler Sprocket 3.208 inch pitch diamter 32 teeth for use with Poly Chain GT Carbon belts with a 8mm pitch and 12mm wide. Gates product ID 77201500
Price: $284.47
You Save: $201.70 (41%)
1610-IDLR-BUSH

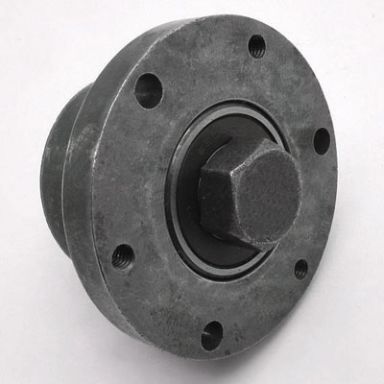

Gates 1610-IDLR-BUSH Taper-Lock style size 1610 idler bushing. Gates Product ID 7720-2610
Price: $220.52
You Save: $156.35 (41%)
2012-IDLR-BUSH
Gates 2012-IDLR-BUSH Taper-Lock style size 2012 idler bushing. Gates Product ID 7720-2012
Price: $266.12
You Save: $188.68 (41%)
20-IDL-BRAK
Gates 20-IDL-BRAK Idler Bracket with bolt thread 1 - 14for use with 1610-IDL-BUSH 8mm Pitch Idler Sprockets, 4.25" OD Flat Idler Pulleys, 2012-IDL-BUSH, 2517-IDL-BUSH, 20-IDL-BUSH (SK) 14mm Pitch Idler Sprockets, 6.50" OD Flat Idler Pulleys, 30-IDL-BUSH (SF), 40-IDL-BUSH (E). Gates Product ID 7720-1020
Price: $250.64
You Save: $177.71 (41%)
20-IDLR-BUSH(SK)
Gates 20-IDLR-BUSH(SK) QD style size SK idler bushing. Gates Product ID 7720-1120
Price: $211.25
You Save: $149.78 (41%)
20-IDL-SPRK
20-IDL-SPRK Gates Poly Chain GT Carbon Idler Sprocket 5.263 inch pitch diamter 30 teeth for use with Poly Chain GT Carbon belts with a 14mm pitch and 20mm wide. Gates product ID 77201600
Price: $640.75
You Save: $454.32 (41%)
20-SPK2-IDL
20-SPK2-IDL PowerGrip GT2 Idler Sprocket 3.208 inch pitch diamter 32 teeth for use with PowerGrip GT2 belts with a 8mm pitch and 20mm wide. Gates product ID 77201740
Price: $227.16
You Save: $161.07 (41%)
21-IDL-SPRK
21-IDL-SPRK Gates Poly Chain GT Carbon Idler Sprocket 3.208 inch pitch diamter 32 teeth for use with Poly Chain GT Carbon belts with a 8mm pitch and 21mm wide. Gates product ID 77201510
Price: $302.30
You Save: $214.35 (41%)
2517-IDLR-BUSH
Gates 2517-IDLR-BUSH Taper-Lock style size 2517 idler bushing. Gates Product ID 7720-2517
Price: $323.70
You Save: $229.51 (41%)
30-IDLR-BUSH(SF)
Gates 30-IDLR-BUSH(SF) QD style size SF idler bushing. Gates Product ID 7720-1130
Price: $242.90
You Save: $172.23 (41%)
30-SPK2-IDL
30-SPK2-IDL PowerGrip GT2 Idler Sprocket 3.609 inch pitch diamter 36 teeth for use with PowerGrip GT2 belts with a 8mm pitch and 30mm wide. Gates product ID 77201750
Price: $482.70
You Save: $342.26 (41%)
36-IDL-SPRK
36-IDL-SPRK Gates Poly Chain GT Carbon Idler Sprocket 3.609 inch pitch diamter 36 teeth for use with Poly Chain GT Carbon belts with a 8mm pitch and 36mm wide. Gates product ID 77201520
Price: $396.31
You Save: $281.00 (41%)
37-IDL-SPRK
37-IDL-SPRK Gates Poly Chain GT Carbon Idler Sprocket 5.236 inch pitch diamter 30 teeth for use with Poly Chain GT Carbon belts with a 14mm pitch and 37mm wide. Gates product ID 77201610
Price: $675.60
You Save: $479.02 (41%)
40-IDLR-BUSH(E)
Gates 40-IDLR-BUSH(E) QD style size E idler bushing. Gates Product ID 7720-1140
Price: $755.15
You Save: $535.43 (41%)
40-SPK2-IDL
40-SPK2-IDL PowerGrip GT2 Idler Sprocket 5.263 inch pitch diamter 30 teeth for use with PowerGrip GT2 belts with a 14mm pitch and 40mm wide. Gates product ID 77201850
Price: $655.81
You Save: $464.98 (41%)
55-SPK2-IDL
55-SPK2-IDL PowerGrip GT2 Idler Sprocket 5.965 inch pitch diamter 34 teeth for use with PowerGrip GT2 belts with a 14mm pitch and 55mm wide. Gates product ID 77201860
Price: $754.49
You Save: $534.95 (41%)
5-IDL-BRAK
Gates 5-IDL-BRAK Idler Bracket with bolt thread 5/8 - 18for use with 1610-IDL-BUSH 8mm Pitch Idler Sprockets, 4.25" OD Flat Idler Pulleys, 2012-IDL-BUSH, 2517-IDL-BUSH, 20-IDL-BUSH (SK) 14mm Pitch Idler Sprockets, 6.50" OD Flat Idler Pulleys, 30-IDL-BUSH (SF), 40-IDL-BUSH (E). Gates Product ID 7720-1005
Price: $115.00
You Save: $81.53 (41%)
62-IDL-SPRK
62-IDL-SPRK Gates Poly Chain GT Carbon Idler Sprocket 3.609 inch pitch diamter 36 teeth for use with Poly Chain GT Carbon belts with a 8mm pitch and 62mm wide. Gates product ID 77201530
Price: $464.64
You Save: $329.44 (41%)
68-IDL-SPRK
68-IDL-SPRK Gates Poly Chain GT Carbon Idler Sprocket 5.965 inch pitch diamter 34 teeth for use with Poly Chain GT Carbon belts with a 14mm pitch and 68mm wide. Gates product ID 77201620
Price: $838.13
You Save: $594.25 (41%)
90-IDL-SPRK
90-IDL-SPRK Gates Poly Chain GT Carbon Idler Sprocket 5.965 inch pitch diamter 34 teeth for use with Poly Chain GT Carbon belts with a 14mm pitch and 90mm wide. Gates product ID 77201640
Price: $869.56
You Save: $744.84 (46%)
