MPD and TDMP Series Dual Hydraulic Hose Reels

Signature Features

  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat finish
  • CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability
  • Industry leading 2 year manufacturer's limited warranty
  • Made in the U.S.A. – Sold & Supported Worldwide

Possible Fields of Application

  • Service/Mechanic Trucks
  • Garage Setting
  • Hydraulic Rescue Tools
  • Fire Rescue
  • Emergency Situations
  • Mining, Construction & Railroad Operations
  • Cranes

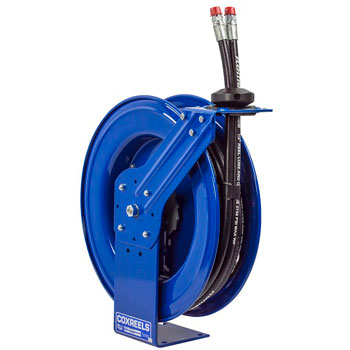

COXREELS - MPD & TDMP Spring Driven Dual Hydraulic Hose Reels

MPD, TDMP and 1275HP Series "Dual Hydraulic" hose reels have similar features to their related series, but have been redesigned to handle dual hydraulic applications.

Swivel

  • External fluid path with dual port melanized 90° full-flow NPT swivel inlet
  • Swivel Seals: TEFLON
  • One-sided supply/return hookup

Design & Structure

  • Sturdy dual pedestal design with Coxreels' exclusive Super Hub™ dual axle support system
  • Guide arm adjusts to wall, floor, vehicle & overhead positions
  • Solid one piece, heavy gauge 1/4" steel base & support posts for maximum strength

Retraction

  • Enclosed factory tuned & matched cartridge-styke spring motor
  • Non corrosive stainless steel spring, pawl & zinc plated ratchet
  • Multi-position lock ratchet mechanism secures hose at desired length
Sort by:

Specify a quantity for any of the products listed on this page, then click 'Add to Cart' to add them to your shopping cart. If the quantity field is not visible for a product, you must click on the 'More Details' button and select the options or fill out the fields that require your input.

Qty

SKU
Description
Price
COX-MPDL-N-150
COXREELS MPDL-N-150 - Dual Hydraulic Hose Spring Rewind Hose Reel for hydraulic oil: 1/4" I.D., 50' hose capacity, less hose, 3000 PSI.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $702.35
COX-MPDL-N-330
COXREELS MPDL-N-330 - Dual Hydraulic Hose Spring Rewind Hose Reel for hydraulic oil: 3/8" I.D., 30' hose capacity, less hose, 3000 PSI.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $702.35
COX-MPDL-N-430
COXREELS MPDL-N-430 - Dual Hydraulic Hose Spring Rewind Hose Reel for hydraulic oil: 1/2" I.D., 30' hose capacity, less hose, 2500 PSI.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $704.10
COX-MPD-N-330
COXREELS MPD-N-330 - Dual Hydraulic Hose Spring Rewind Hose Reel for hydraulic oil: 3/8" I.D., 30' hose, 3000 PSI.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $1,007.60
COX-MPD-N-430
COXREELS MPD-N-430 - Dual Hydraulic Hose Spring Rewind Hose Reel for hydraulic oil: 1/2" I.D., 30' hose, 2500 PSI.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $1,022.47
COX-TDMPL-N-350
COXREELS TDMPL-N-350 - Dual Hydraulic Hose Spring Rewind Hose Reel for hydraulic oil: 3/8" I.D., 50' hose capacity, less hose, 3000 PSI.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $919.26
COX-TDMPL-N-450
COXREELS TDMPL-N-450 - Dual Hydraulic Hose Spring Rewind Hose Reel for hydraulic oil: 1/2" I.D., 50' hose capacity, less hose, 2500 PSI.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $919.26
COX-TDMP-N-350
COXREELS TDMP-N-350 - Dual Hydraulic Hose Spring Rewind Hose Reel for hydraulic oil: 3/8" I.D., 50' hose, 3000 PSI.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $1,434.43
COX-TDMP-N-450
COXREELS TDMP-N-450 - Dual Hydraulic Hose Spring Rewind Hose Reel for hydraulic oil: 1/2" I.D., 50' hose, 2500 PSI.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $1,465.05
