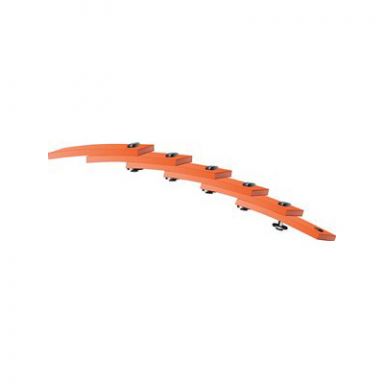

Nu-T-Link® Belting
Nu-T-Link V-belting is designed for rapid installation in anassortment of lengths and operating conditions.
Markets/Applications
Suitable alternative to standard belts on all industrial applicationsand particularly suited to drives requiring link belting for ease ofinstallation.
Features/Advantages Color Coded Studs make for easy identifi cation and installation. Orange Polyurethane/Polyester composite resists oil,water, chemicals and heat (working temperature range:-40o F to +212o F (-40o C to +100o C). May be assembled in an assortment of lengths to fit multiple drive confi gurations. Recommended Sheeves
Multi-Duty Sheaves
Notes
Nu-T-Link is available in 50 foot reels.
The studs are color coded: 0-Red; A-Silver; B-Green; C-Blue; D-Black; E-Black.
Nu-T-Link does not meet RMA requirements for V-belt static conductivity.
A Nu-T-Link assembly tool will be supplied free of charge with belting.
WARNING: Do NOT use with backside idlers.
