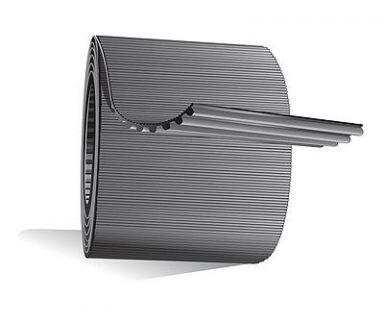

Long-Length Poly Chain® GT®2 Belting
An innovative construction combined with the Gates tooth profi lemakes Poly Chain GT2 belting Gates most powerful synchronousbelting. Compact and lightweight, Poly Chain GT2 belt drivesdeliver more power in less space.
Markets/Applications
Long length Poly Chain GT2 belting is a cost effective, low maintenancedrive alternative that is well suited for linear movement,positioning and conveying applications.
Features/Advantages - Gates patented curvilinear tooth profi le provides excellentpositioning characteristics, noise reduction, high shearstrength, and improved load carrying capacity.
- Robust aramid tensile cord combines minimal stretch withextraordinary strength and load carrying capacity, while absorbingshock and surge loads.
- Durable polyurethane construction resists chemicals, oil, pollutants,and abrasion.
- Nylon tooth facing reduces friction and eliminates the needfor lubrication.
- Eliminates lubrication and re-tensioning to reduce maintenanceand labor as compared to roller chain drives.
- Fully operational in temperature extremes of -65o F to +185o F(-54o C to +85o C).
Recommended Sprockets
Poly Chain GT2 Sprockets.
Notes
Minimum order length for Poly Chain GT2 belting is 50 feet, ordered in 50 foot increments thereafter. Continuous lengths, if needed, must be
specifed when ordering, and must be ordered in increments of the minimum order quantity. Continuous lengths may require lead times.
Poly Chain GT2 belting can be used on existing drives as replacement for Poly Chain GT belting.
Minimum order quantities may vary for non-standard widths. Check with Customer Service.
