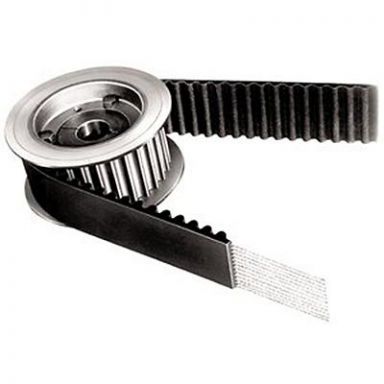

PowerGrip® HTD® Sprockets

Markets/Applications
Use with PowerGrip HTD Belts..

Notes
3M and 5M PowerGrip HTD Sprockets are available in minimum plain bore (MPB).
20M sprockets are available in QD® style.
Sprocket part numbers are comprised of number of grooves, pitch and width. For example,
part number P14-5M-09AL denotes 14 grooves, 5mm pitch, 9mm width and “AL” for aluminum.
On a sprocket, pitch is the distance between groove centers and is measured on the pitch circle of the sprocket. The pitch circle of the
sprocket coincides with the pitch line of the belt mating with it. The pitch diameter of the sprocket is always greater than its outside diameter.
Abbreviations used for sprocket materials: AL = Aluminum GI = Gray Iron
WARNING: Do NOT use these sprockets with rim speeds in excess of 6,500 fpm.
