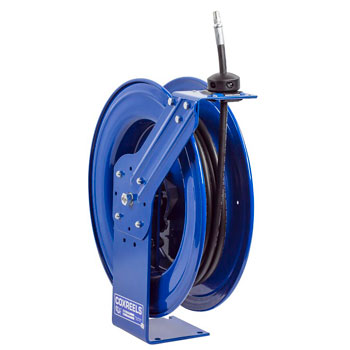

HP High Pressure Heavy Duty Hose Reels

Signature Features

  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat finish
  • CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability
  • Industry leading 2 year manufacturer's limited warranty
  • Made in the U.S.A. – Sold & Supported Worldwide

Possible Fields of Application

  • Air/Water Services
  • Pneumatic Tools
  • Washdown
  • Lubrication
  • Service/mechanic/Utility Vehicles
  • Chemical Fluid Transfer
  • General Industrial
  • Manufacturing Plants & Facilities
  • Maintenance, Repair & Operations
  • Automotive & Fleet Service Centers

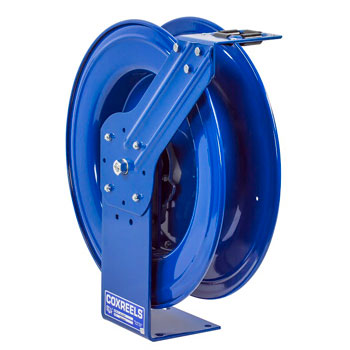

COXREELS - SH Series

SH Series "Super Hub™" spring driven hose reels, like the P Series, have a long history of dependable performance. The larger chassis and frame accommodate longer lengths and larger diameters of hose. Coxreels' original Super Hub™ dual axle support system increases the stability during operation, reduces vibration and strengthens the structural integrity of the reel.

Swivel

  • External fluid path with machined from solid brass 90° full-flow NPT swivel inlet (Zinc plated steel swivel on HP models)
  • Swivel Seals: NITRILE

Design & Structure

  • Sturdy single pedestal reel features Coxreels' exclusive Super Hub™ dual axle support system
  • Guide arm adjusts to wall, floor, vehicle & overhead positions
  • Solid one piece, heavy gauge 1/4" steel base & support post for maximum stability
  • 1" solid steel axle & lubricated precision bearings for smooth rotation

Retraction

  • Enclosed factory tuned & matched cartridge-style spring motor
  • Non-corrosive stainless steel spring, pawl & zinc plated ratchet
  • Multi-position lock ratchet mechanism secures hose at desired length
Sort by:

Specify a quantity for any of the products listed on this page, then click 'Add to Cart' to add them to your shopping cart. If the quantity field is not visible for a product, you must click on the 'More Details' button and select the options or fill out the fields that require your input.

Qty

SKU
Description
Price
COX-HPL-N-140
COXREELS HPL-N-140 - Heavy Duty Spring Rewind Hose Reel for grease/hydraulic oil: 1/4" I.D., 40' hose capacity, less hose, 5000 PSI.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $464.45
COX-HPL-N-150
COXREELS HPL-N-150 - Heavy Duty Spring Rewind Hose Reel for grease/hydraulic oil: 1/4" I.D., 50' hose capacity, less hose, 5000 PSI.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $464.45
COX-HPL-N-160
COXREELS HPL-N-160 - Heavy Duty Spring Rewind Hose Reel for grease/hydraulic oil: 1/4" I.D., 60' hose capacity, less hose, 5000 PSI.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $487.19
COX-HPL-N-335
COXREELS HPL-N-335 - Heavy Duty Spring Rewind Hose Reel for grease/hydraulic oil: 3/8" I.D., 35' hose capacity, less hose, 4000 PSI.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $478.44
COX-HPL-N-340
COXREELS HPL-N-340 - Heavy Duty Spring Rewind Hose Reel for grease/hydraulic oil: 3/8" I.D., 40' hose capacity, less hose, 4000 PSI.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $478.44
COX-HPL-N-350
COXREELS HPL-N-350 - Heavy Duty Spring Rewind Hose Reel for grease/hydraulic oil: 3/8" I.D., 50' hose capacity, less hose, 4000 PSI.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $487.19
COX-HP-N-140
COXREELS HP-N-140 - Heavy Duty Spring Rewind Hose Reel for grease/hydraulic oil: 1/4" I.D., 40' hose, 5000 PSI.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $601.76
COX-HP-N-150
COXREELS HP-N-150 - Heavy Duty Spring Rewind Hose Reel for grease/hydraulic oil: 1/4" I.D., 50' hose, 5000 PSI.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $657.74
COX-HP-N-160
COXREELS HP-N-160 - Heavy Duty Spring Rewind Hose Reel for grease/hydraulic oil: 1/4" I.D., 60' hose, 5000 PSI.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $745.20
COX-HP-N-335
COXREELS HP-N-335 - Heavy Duty Spring Rewind Hose Reel for grease/hydraulic oil: 3/8" I.D., 35' hose, 4000 PSI.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $627.13
COX-HP-N-340
COXREELS HP-N-340 - Heavy Duty Spring Rewind Hose Reel for grease/hydraulic oil: 3/8" I.D., 40' hose, 4000 PSI.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $653.37
COX-HP-N-350
COXREELS HP-N-350 - Heavy Duty Spring Rewind Hose Reel for grease/hydraulic oil: 3/8" I.D., 50' hose, 4000 PSI.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $697.10
