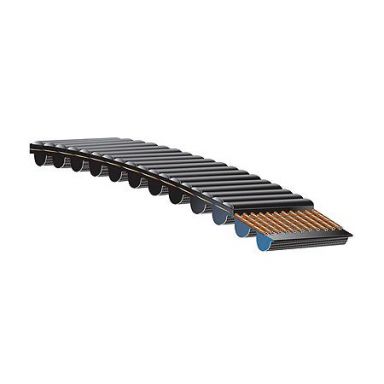

Curve Saw Poly Chain® GT®2 Belts

An innovative construction combined with the Gates tooth profile makes the Curve Saw Belt compact and lightweight with extraordinary strength and load carrying capacity. The Curve Saw Belt can be used on the toughest shock loaded applications to reduce down time.

Markets/Applications
All industrial markets, but particularly suited for Curve Saw applications or any shock loaded application requiring synchronization.

Features/Advantages

Gates patented curvilinear tooth profi le provides high shear strength, and improved load carrying capacity.

Unique aramid tensile cord combines extraordinary strength and superior shock load capacity.

Significantly reduces log jams and associated down time.

Nylon tooth facing reduces friction and eliminates the need for lubrication.

Fully operational in temperature extremes of -65o F to +185o F(-54o C to +85o C).

Recommended Sprockets
Poly Chain GT2 Sprockets—14M

Notes
Belt pitch is the distance in millimeters between two adjacent tooth centers as measured on the pitch line of the belt.
Belt pitch length is the total length (circumference) in millimeters as measured along the pitch line.
The theoretical pitch line of a Poly Chain GT2 belt lies within the tensile member.
WARNING: New designs must utilize the Poly Chain GT2 Sprockets because of the high torque capacity of the Curve Saw Poly Chain GT2 Belt.
