C Series Air and Electric Dual Purpose Hose Reels

Signature Features

  • Professional grade heavy duty steel construction
  • Durable proprietary CPC™ powder coat finish
  • CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability
  • Industry leading 2 year manufacturer's limited warranty
  • Made in the U.S.A. – Sold & Supported Worldwide

Possible Fields of Application

  • Air Services
  • Pneumatic Tools
  • Power Tools
  • Light Source
  • General Industrial
  • Manufacturing Plants & Facilities
  • Maintenance, Repair & Operations, Automotive & Fleet Service Centers

COXREELS - C Series Air/Electric Dual Purpose Hose Reels

C Series "Combination" spring driven air hose/electric cord reels are two reels in one compact assembly. They are perfect for applications that require pneumatic air and an electrical power feed. The single expanded mounting base creates stability and adds to the convenience of one mounting pattern. This series is also available in dual hose combinations.

Swivel

  • External fluid path with machined from solid brass 90° full-flow NPT swivel inlet
  • Swivel Seals: NITRILE
  • External CPC™ powder coated steel components cover for simple slip ring routine maintenance
  • Include 5' lead cable & grounding plug (except on less cord models)

Design & Structure

  • Compact two reel assembly for air/electric applications, each reel operates independently
  • Guide arm adjusts to wall, floor & overhead positions
  • Single expanded, 1/4" steel mounting base for increased stability & space efficiency
  • One mounting pattern allow 1/2 the installation time required to install 2 reels at one station
  • 1" solid steel axle & lubricated precision bearings for smooth rotation

Retraction

  • Enclosed factory tuned & matched cartridge-style spring motor
  • Non corrosive stainless steel spring, pawl & zinc plated ratchet
  • Multi-position lock ratchet mechanism secures hose/cord at desired length
Sort by:

Specify a quantity for any of the products listed on this page, then click 'Add to Cart' to add them to your shopping cart. If the quantity field is not visible for a product, you must click on the 'More Details' button and select the options or fill out the fields that require your input.

Qty

SKU
Description
Price
COX-C-L350-5012-A
COXREELS C-L350-5012-A - Dual Purpose Electric/Air Spring Rewind Reels: 50' 3/8" I.D. hose, 300 PSI; Single Industrial Receptacle, 50' cord, 12 AWG.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $956.00
COX-C-L350-5012-B

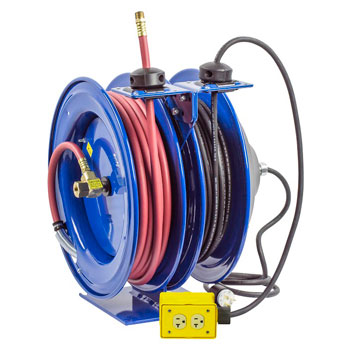

COXREELS C-L350-5012-B - Dual Purpose Electric/Air Spring Rewind Reels: 50' 3/8" I.D. hose, 300 PSI; Quad Receptacle, 50' cord, 12 AWG.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $1,067.07
COX-C-L350-5012-F
COXREELS C-L350-5012-F - Dual Purpose Electric/Air Spring Rewind Reels: 50' 3/8" I.D. hose, 300 PSI; G.F.C.I. Receptacle, 50' cord, 12 AWG.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $1,053.96
COX-C-L350-5012-X
COXREELS C-L350-5012-X - Dual Purpose Electric/Air Spring Rewind Reels: 50' 3/8" I.D. hose, 300 PSI; Less accessory, 50' cord, 12 AWG.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $912.27
COX-C-L350-5016-A
COXREELS C-L350-5016-A - Dual Purpose Electric/Air Spring Rewind Reels: 50' 3/8" I.D. hose, 300 PSI, & Single Industrial Receptacle, 50' cord, 16 AWG.
This item is part of the Quick Ship Program and Most Orders Ship Within 1-2 Business Days

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $855.41
COX-C-L350-5016-C

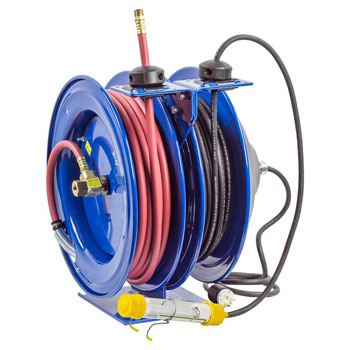

COXREELS C-L350-5016-C - Dual Purpose Electric/Air Spring Rewind Reels: 50' 3/8" I.D. hose, 300 PSI; Fluorescent Tube Light, 50' cord, 16 AWG.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $735.06
COX-C-L350-5016-D

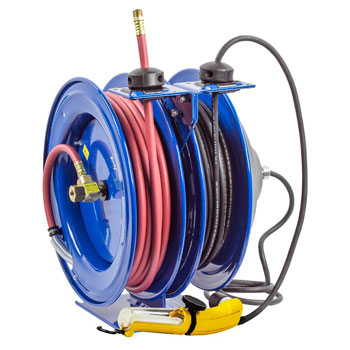

COXREELS C-L350-5016-D - Dual Purpose Electric/Air Spring Rewind Reels: 50' 3/8" I.D. hose, 300 PSI; Fluorescent Angle Light, 50' cord, 16 AWG.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $754.90
COX-C-L350-5016-E

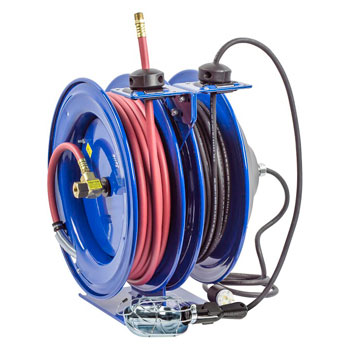

COXREELS C-L350-5016-E - Dual Purpose Electric/Air Spring Rewind Reels: 50' 3/8" I.D. hose, 300 PSI; Incandescent Cage Light, 50' cord, 16 AWG.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $884.28
COX-C-L350-5016-F
COXREELS C-L350-5016-F - Dual Purpose Electric/Air Spring Rewind Reels: 50' 3/8" I.D. hose, 300 PSI; G.F.C.I. Receptacle, 50' cord, 16 AWG.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $961.25
COX-C-L350-5016-X
COXREELS C-L350-5016-X - Dual Purpose Electric/Air Spring Rewind Reels: 50' 3/8" I.D. hose, 300 PSI; Less Accessory, 50' cord, 16 AWG.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $830.05

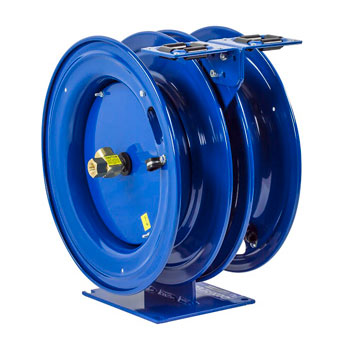

COX-C-L350L-5012L-X
COXREELS C-L350L-5012L-X - Dual Purpose Electric/Air Spring Rewind Reels: 50' 3/8" I.D. hose capacity, less hose, 300 PSI; Less cord & accessory, 50' cord capacity, 12 AWG.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $689.22
COX-C-L350L-5016L-X
COXREELS C-L350L-5016L-X - Dual Purpose Electric/Air Spring Rewind Reels: 50' 3/8" I.D. hose, 300 PSI; Less cord & accessory, 50' cord capacity, 16 AWG.
Coxreels are now BTO (Built to Order) and have a 2-3 week lead time.

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Price: $672.61
